Logitech MX Master 3S Configuration for Linux

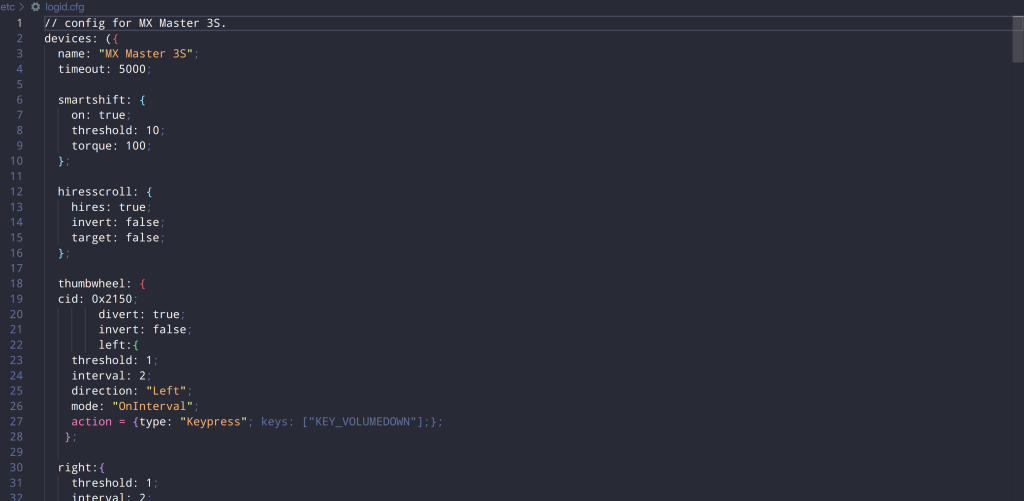

This repository contains a logid.cfg configuration file for customizing the Logitech MX Master 3S mouse on Linux using logiops.
Configuration File Overview
The configuration file includes:
- SmartShift: Enables automatic switching between free-spinning and ratcheted scroll modes based on movement speed.
- High-Resolution Scrolling: Configures high-res scrolling behavior.
- Thumbwheel Settings: Customizes the thumbwheel actions for volume control.
- Gesture Button Mapping: Assigns custom actions to gestures.
Key Names Used
Below are the key codes used in this configuration. These follow the Linux input event system standards.
Keys Defined in logid.cfg:
KEY_A: Select all.KEY_C: Copy.KEY_V: Paste.KEY_X: Cut.KEY_Z: Undo.KEY_VOLUMEDOWN: Decrease Volume.KEY_VOLUMEUP: Increase Volume.KEY_PLAYPAUSE: Play/Pause Media.
Additional Key Names You Can Use
KEY_BRIGHTNESSUP/KEY_BRIGHTNESSDOWN: Adjust screen brightness.KEY_MUTE: Mute audio.KEY_TAB: Simulate Tab key.KEY_ESC: Escape key.
For a full list of available key names, extract from Source: Check the input-event-codes.h file in the Linux kernel source (typically in /usr/include/linux).
How to Use
- Install logiops following the official guide.
- Copy the
logid.cfgfile to the configuration directory:sudo cp logid.cfg /etc/logid.cfg - Restart the logid service:
sudo systemctl restart logid
